2003-2008 Suzuki LTZ400 Quadsport Z400 Magneto Stator+Voltage Rectifier+Gasket Fedex Express
$199.99
Sale price
$199.99
Regular price
Skip to product information
Features:
Made of high grade magnetically conductive material to minimize the magnetic losses.
Computerized winding to optimize quality of copper wiring
Higher grade of electric components.
Dramatically improves reliability and durability comparing to stock units.
Best quality lead wires with insulation bring both enhanced abrasion and heat resistant.
Rectifier made of highest quality electro-conducting lamination materials.
Improved heat sink and charging capabilities.
Direct replacement to your original unit.
Plug-and-play, direct fit, instruction is NOT Included.
Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator + Regulator + Gasket
Replacement Part Number:
For Kawasaki
Stator Assy: 21003-S006
Rectifier, regulator: 21066-S004, 21066-S011
Gasket, generator cover: 11061-S072
For Suzuki
Stator Assy: 32101-07G00 ,32101-07G01
Rectifier, regulator: 32800-05F10, 32800-05F20
Gasket, generator cover: 11483-07G00
For Arctic Cat
Stator Assy: 3409-026
Rectifier, regulator: 3409-027, 3409-046
Gasket, generator cover: 3409-023
Fitment:
For Kawasaki KSF400 KFX400 2003-2006
For Suzuki LTZ400 Quadsport Z 400 2003-2008
For Arctic Cat DVX400 2004/2006-2008

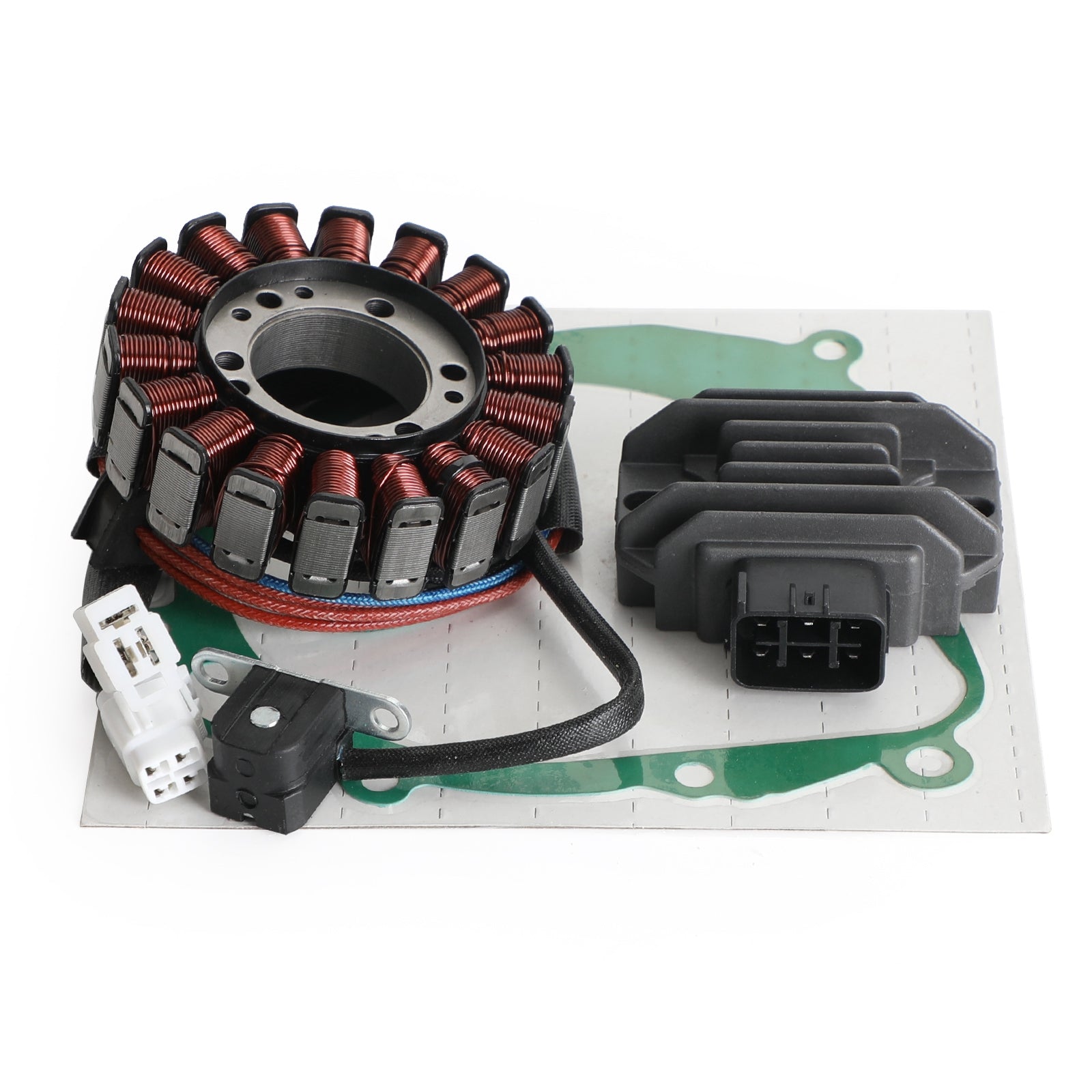

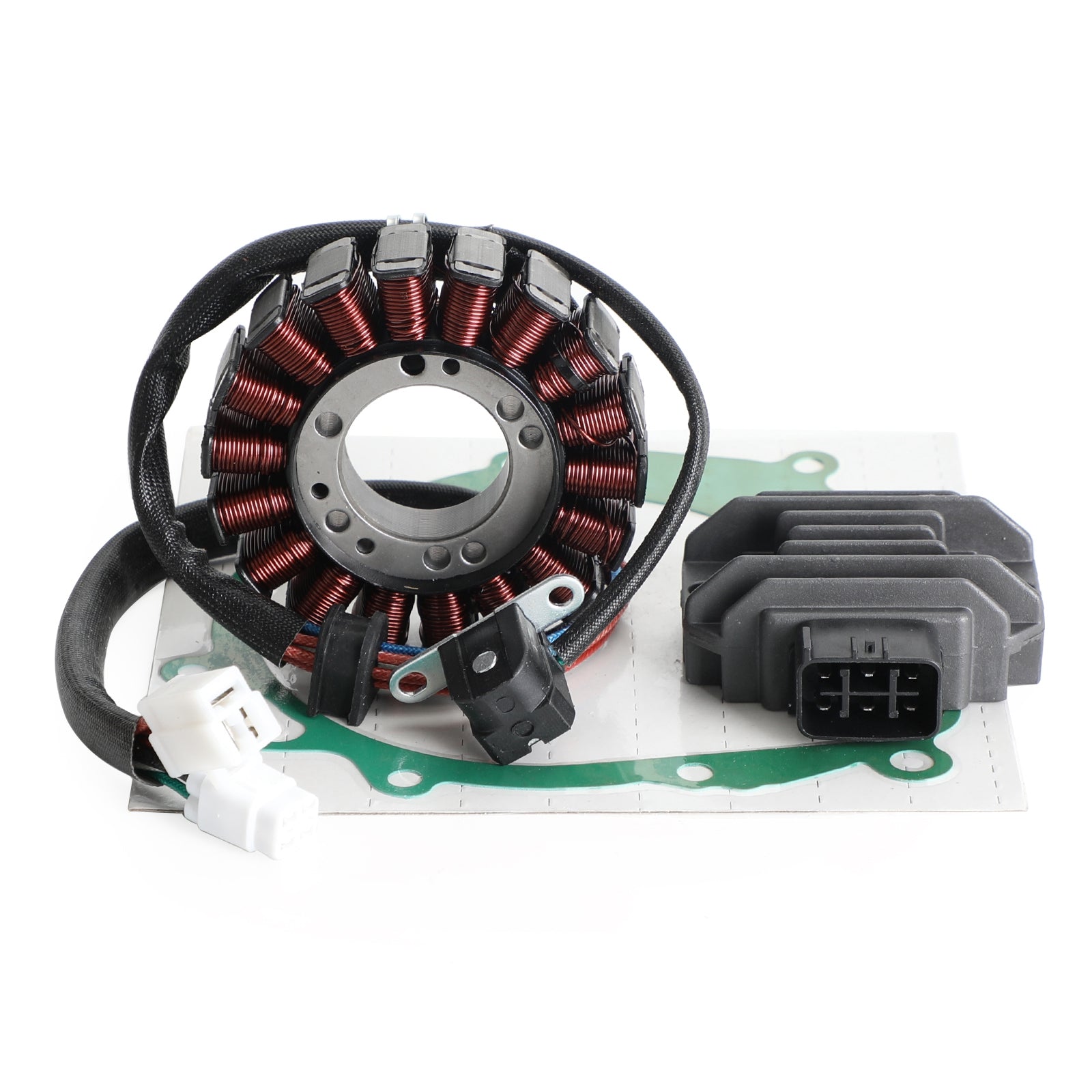

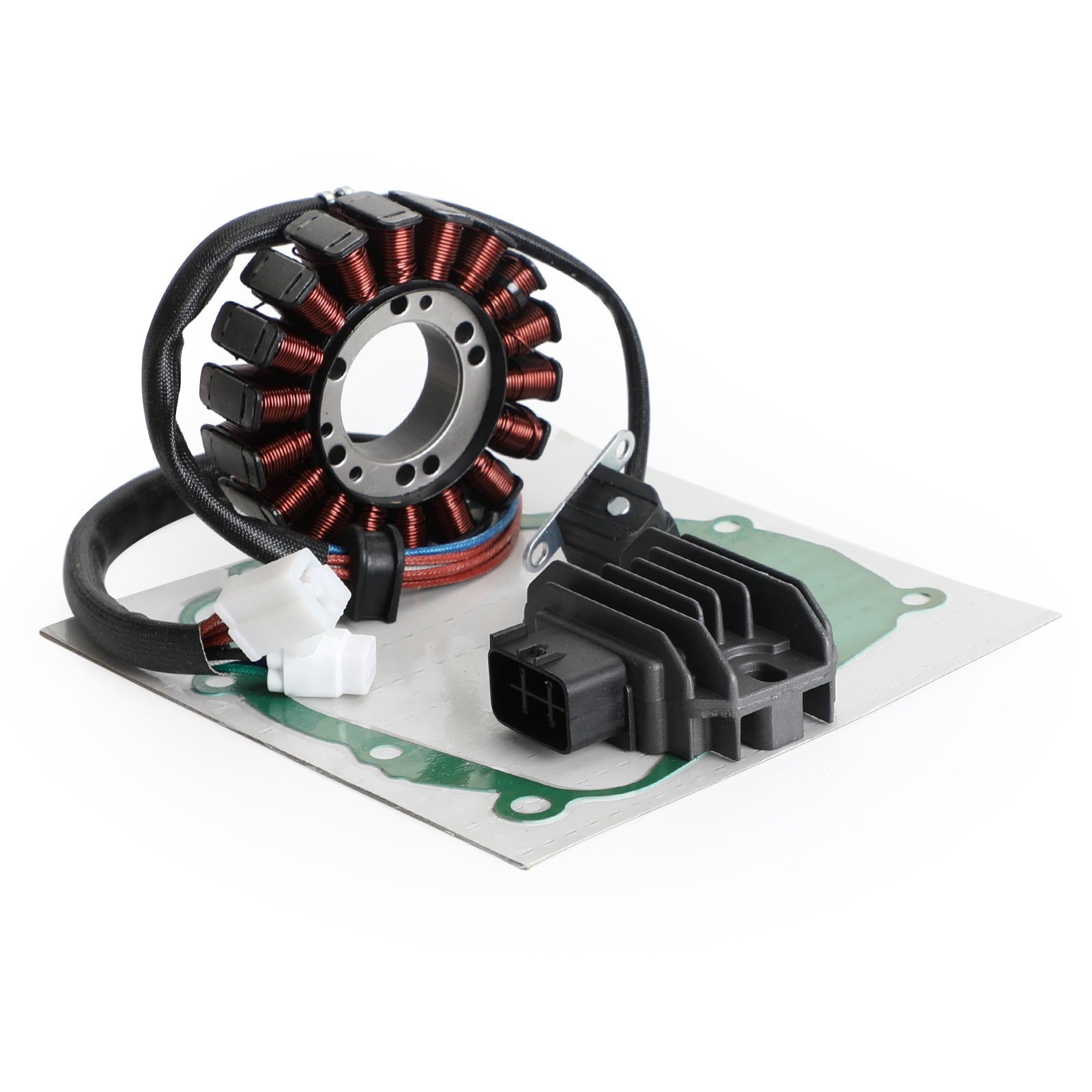

Package Includes:

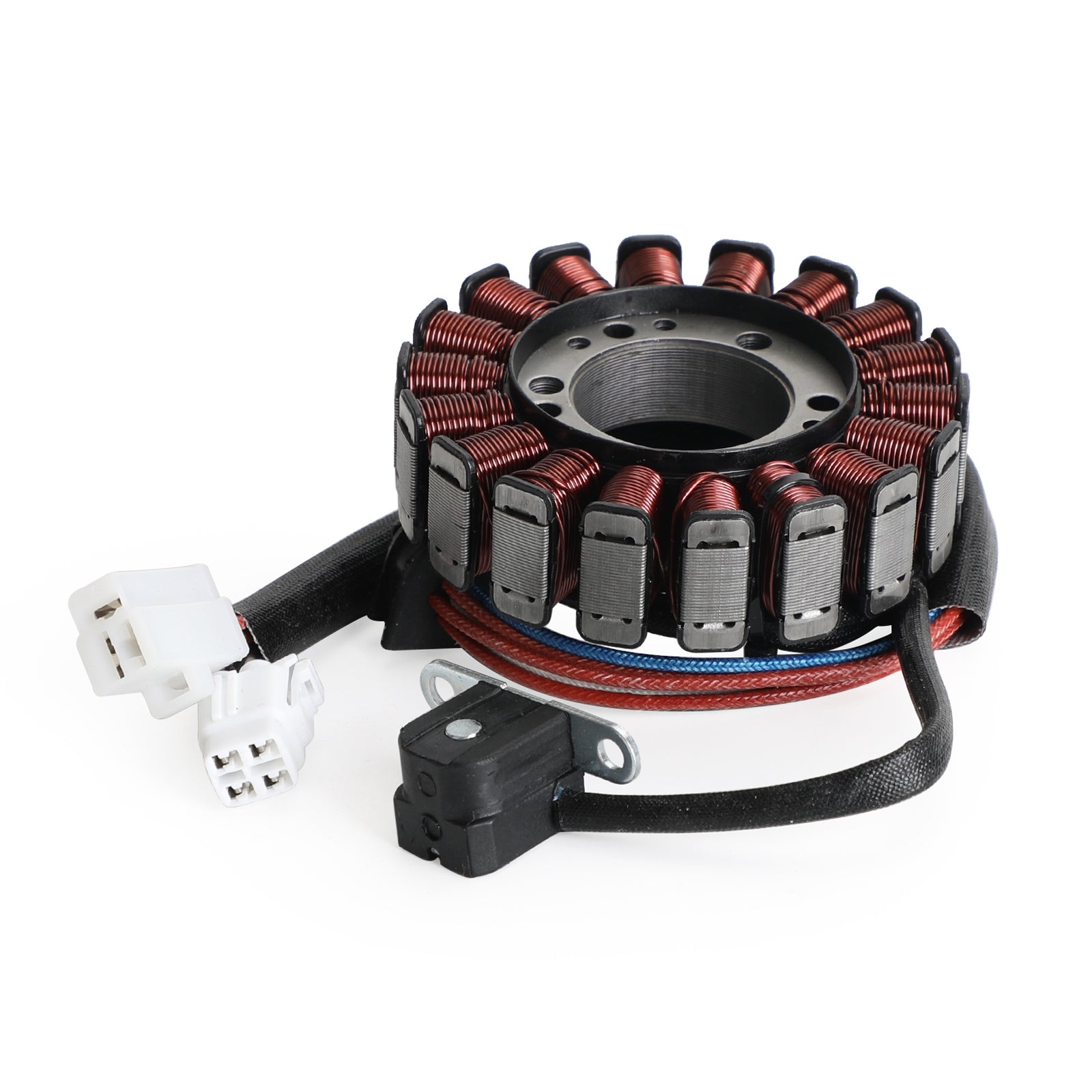

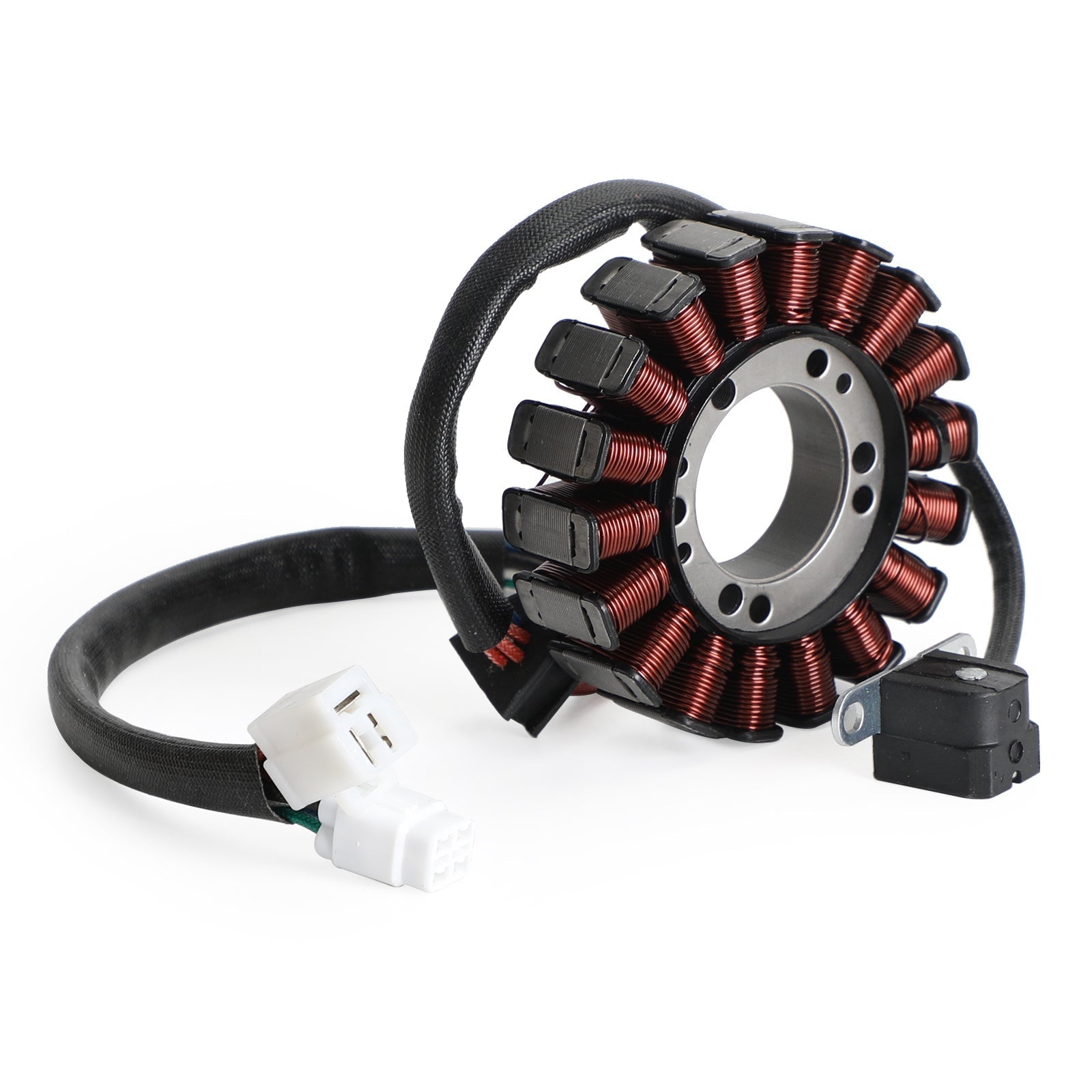

1 x Stator Coil

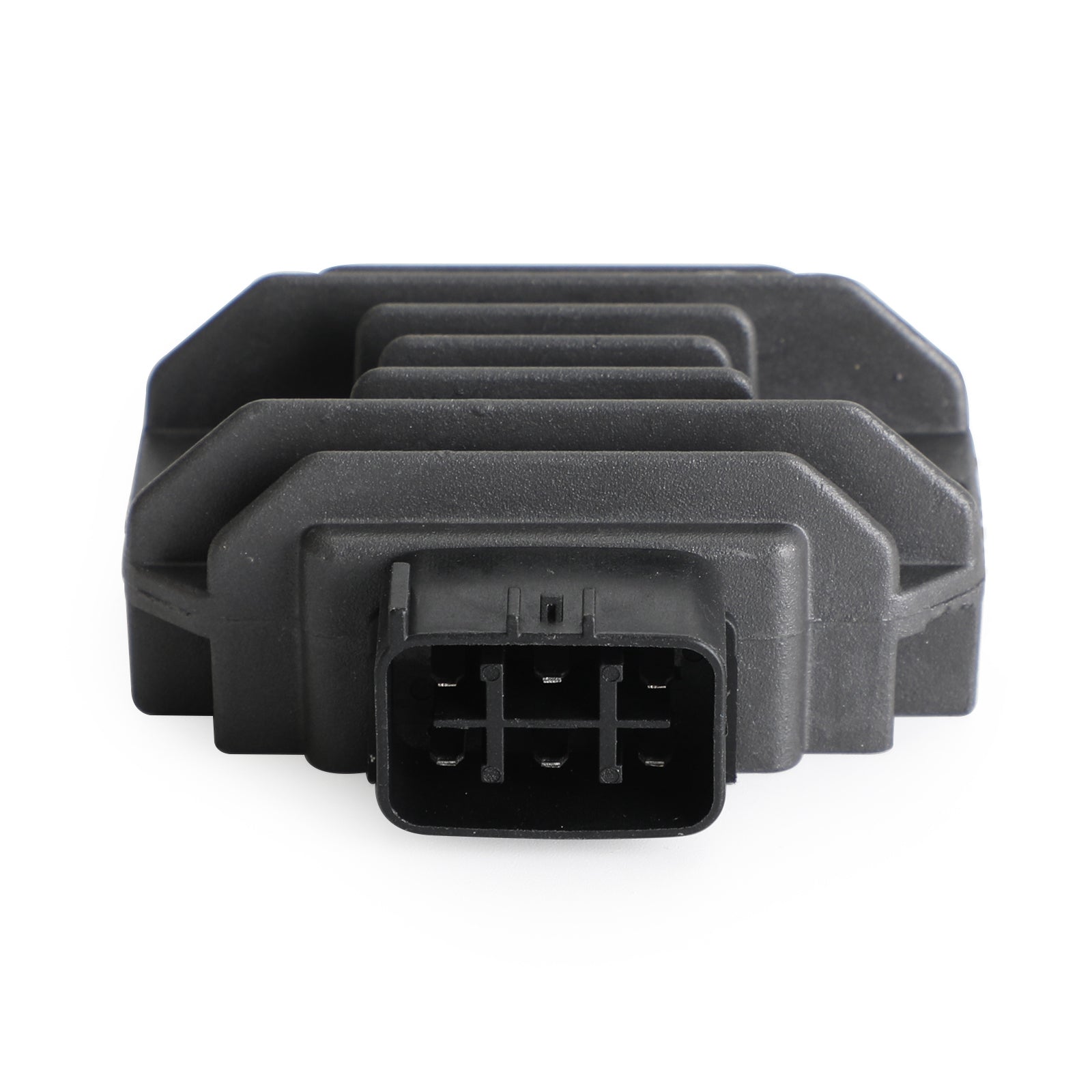

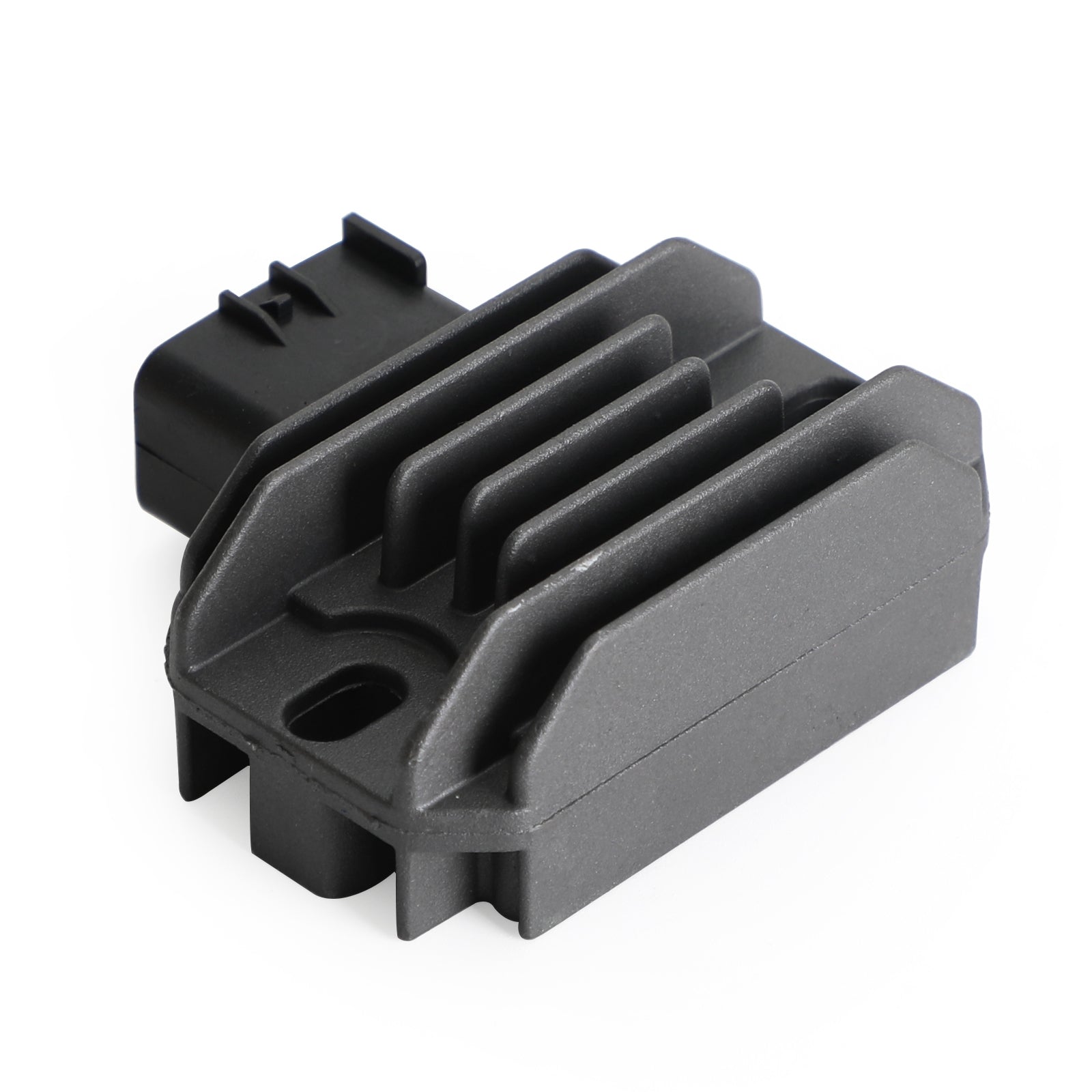

1 x Regulator Rectifier

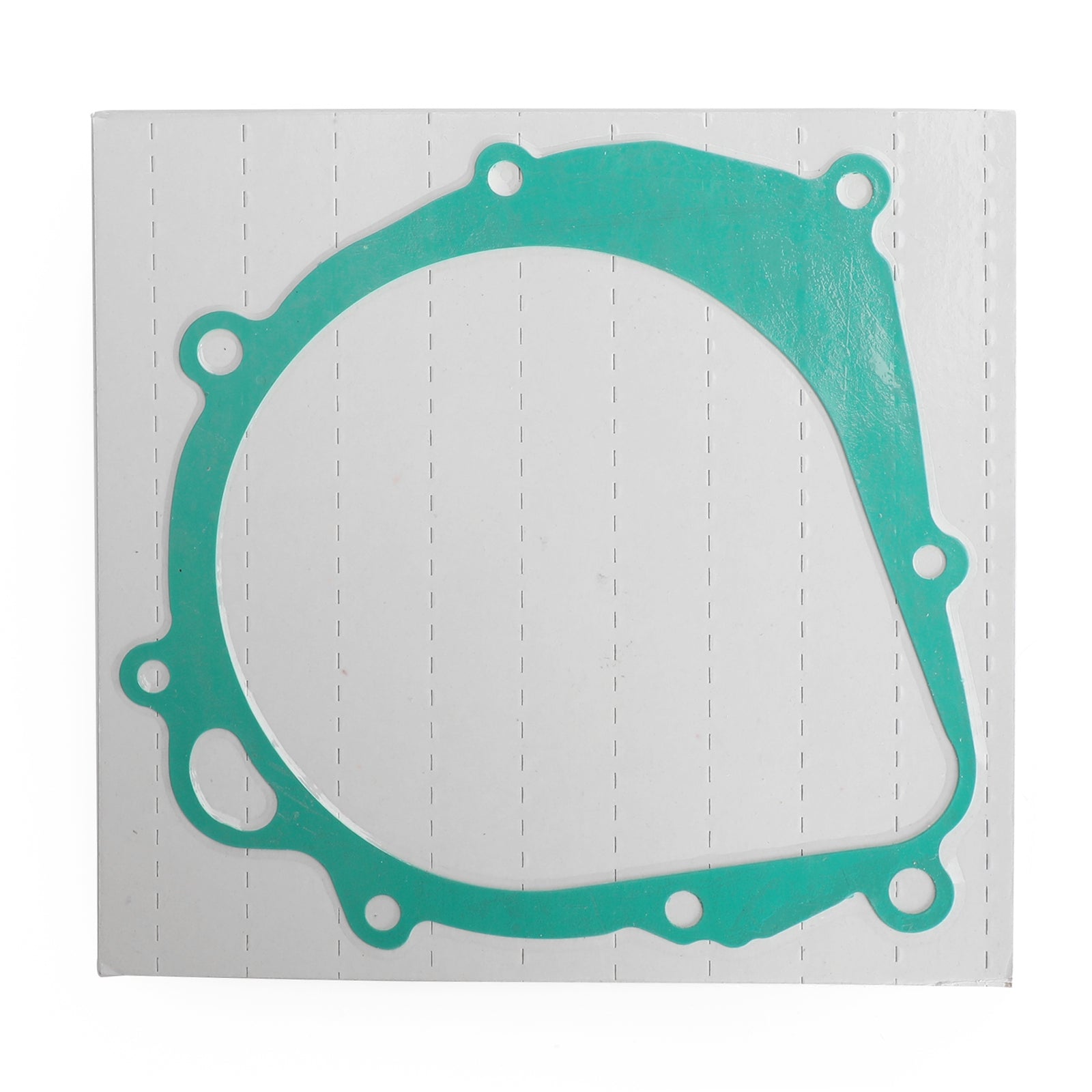

1 x Generator Gasket
Note:
Before installing your new stator regulator rectifier;
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
