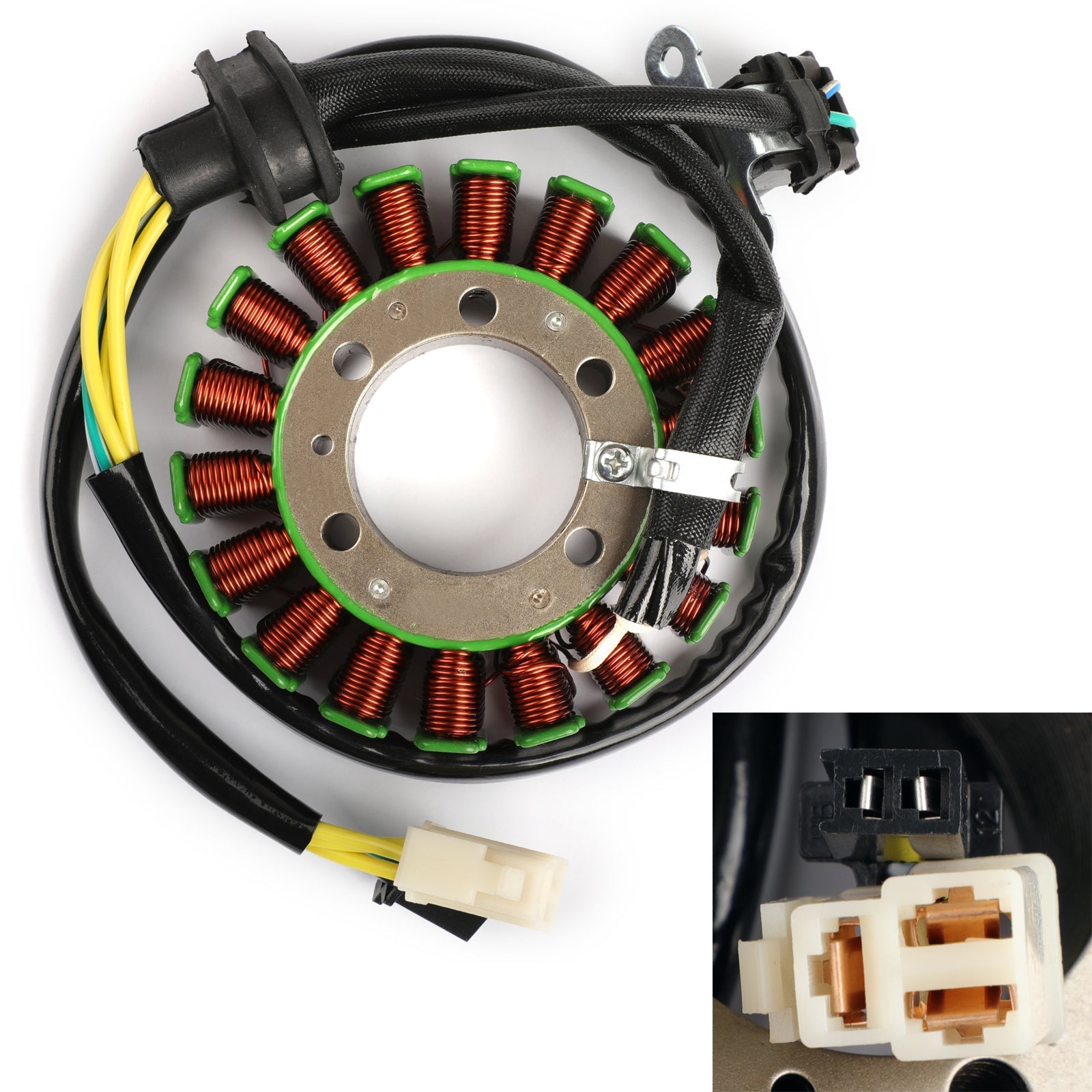

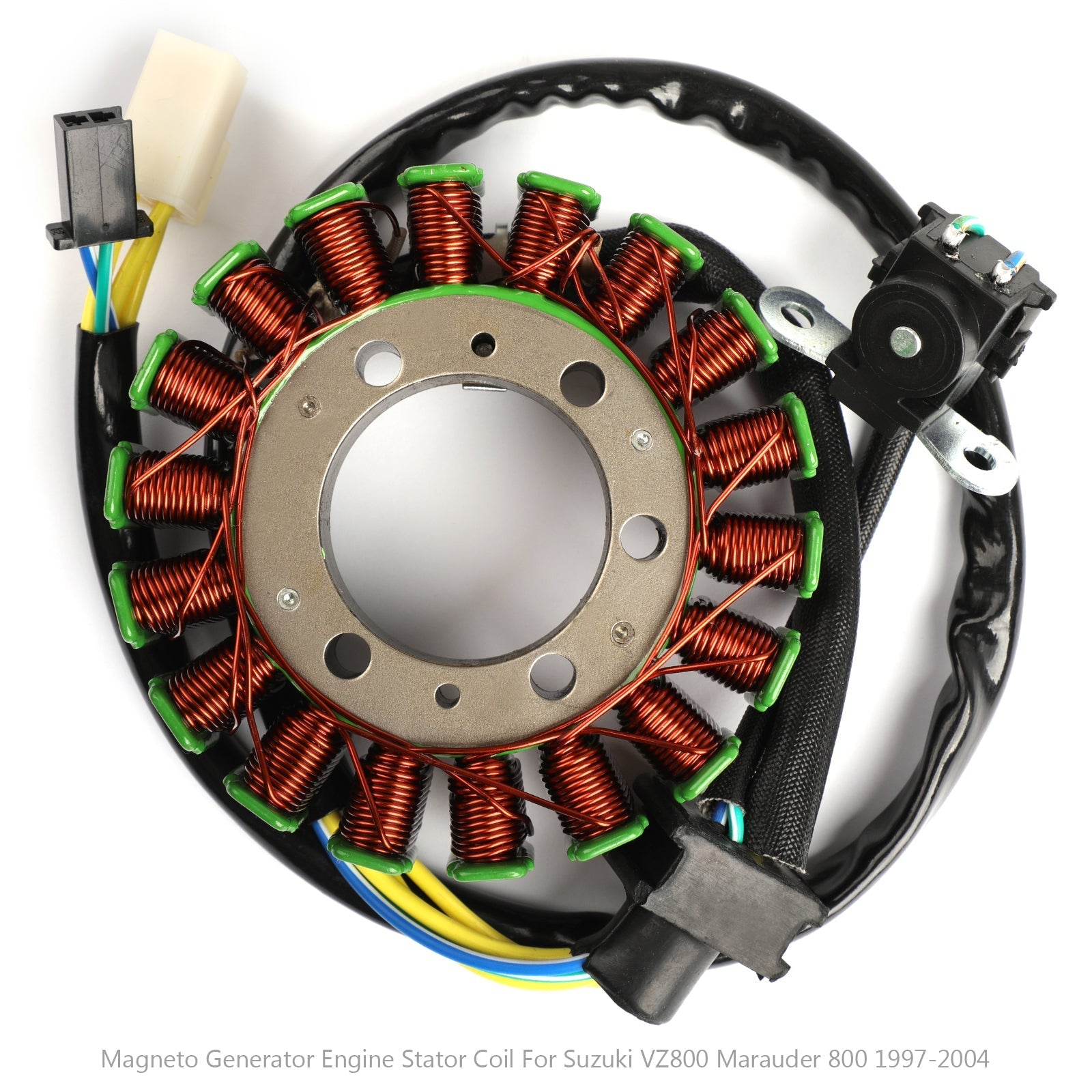

Generator Stator Coil For Suzuki VZ800 Marauder 800 1997-2004 32101-48E00 Generic
$179.99
Sale price
$179.99
Regular price
Skip to product information
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, simple installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included

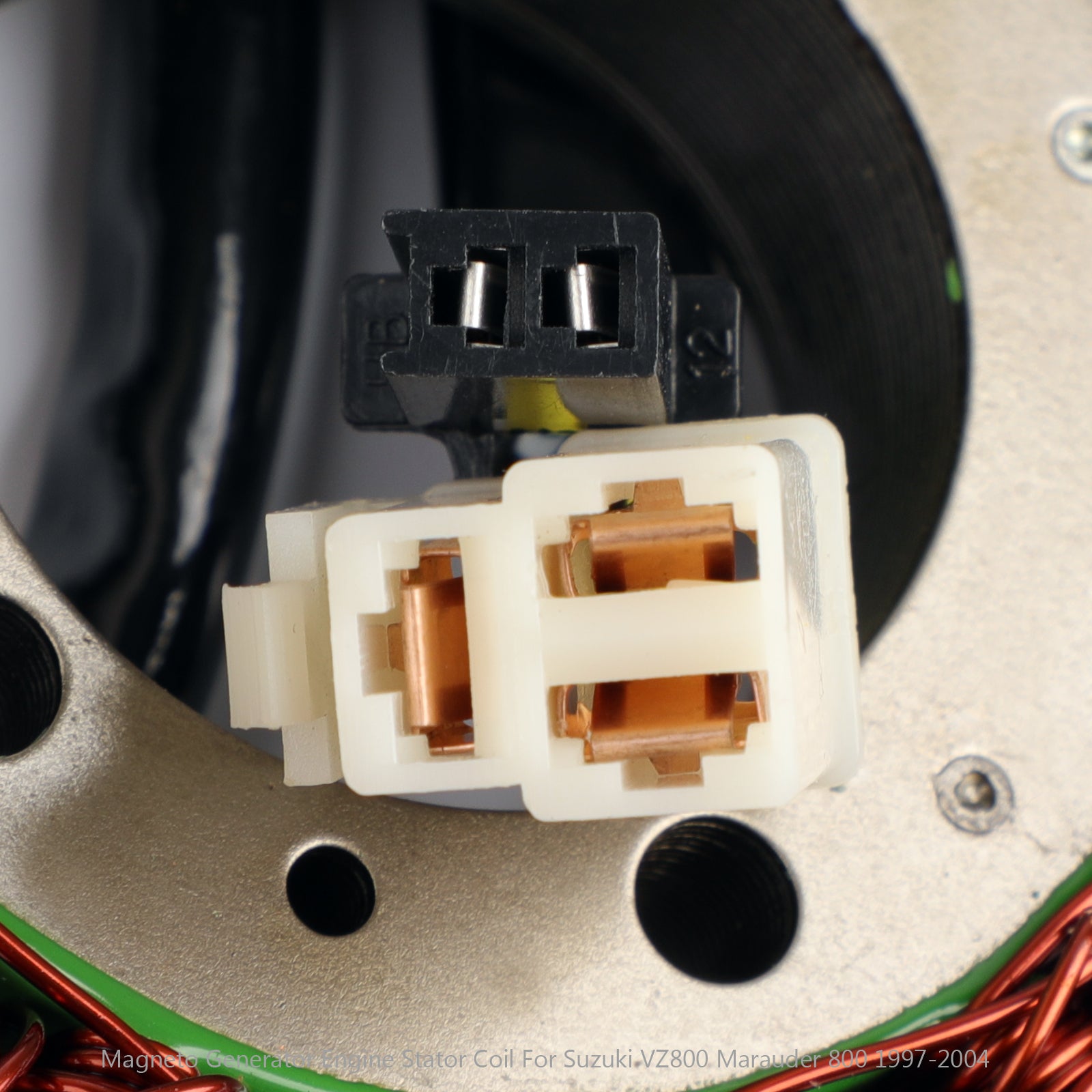

Connector included
All products shipped are tested
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
OEM Replacement Part Number: 32101-48E00

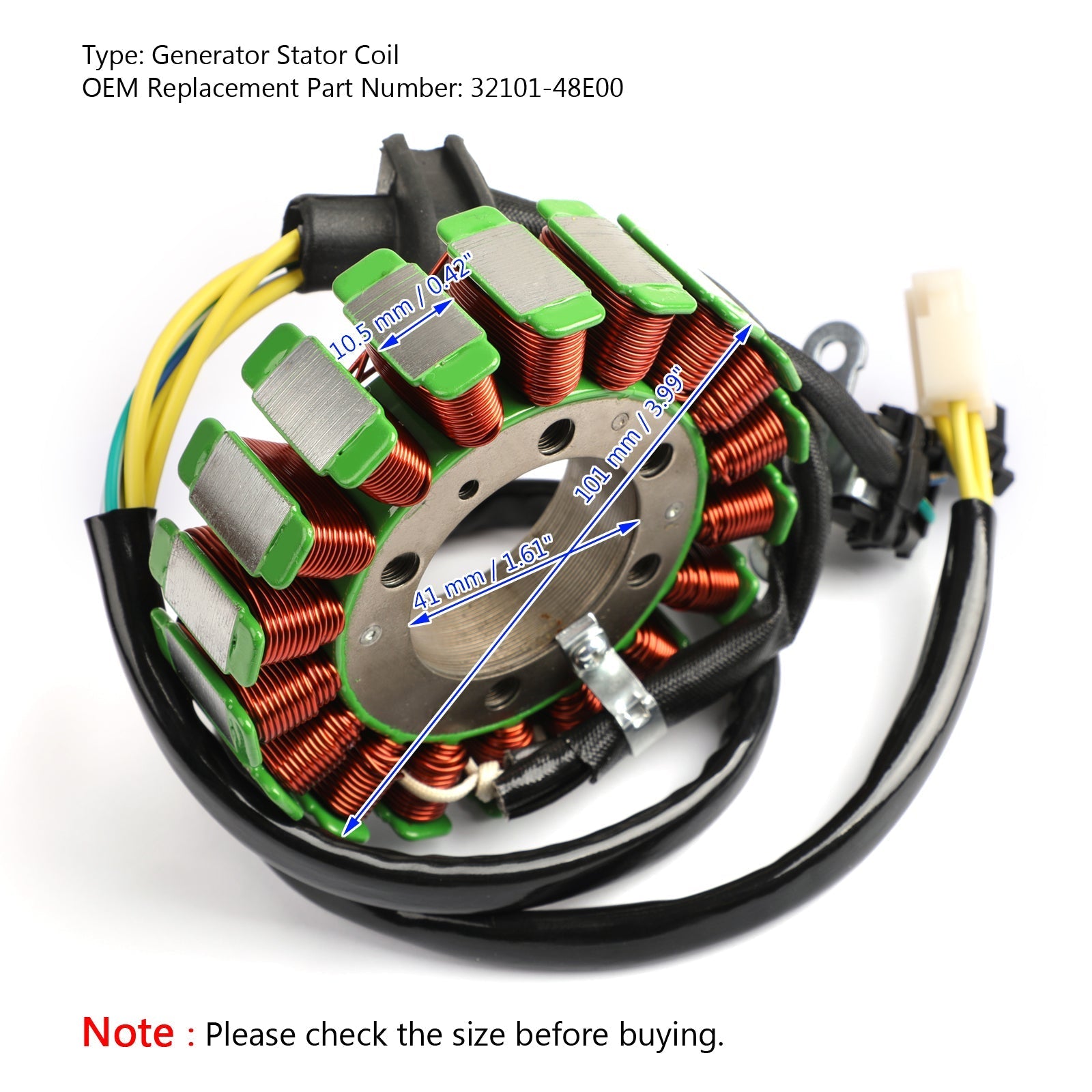

Dimensions :
Interior diameter : 41 mm / 1.61"
Exterior diameter : 101 mm / 3.99"
Thickness : 10.5 mm / 0.42"
Other specifications :
Number of wires : 5
Number of pins : 5
Number of plug : 2
Number of fixation holes: 5
FITMENT:
Fits Suzuki VZ800 Marauder 800 1997-2004
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
