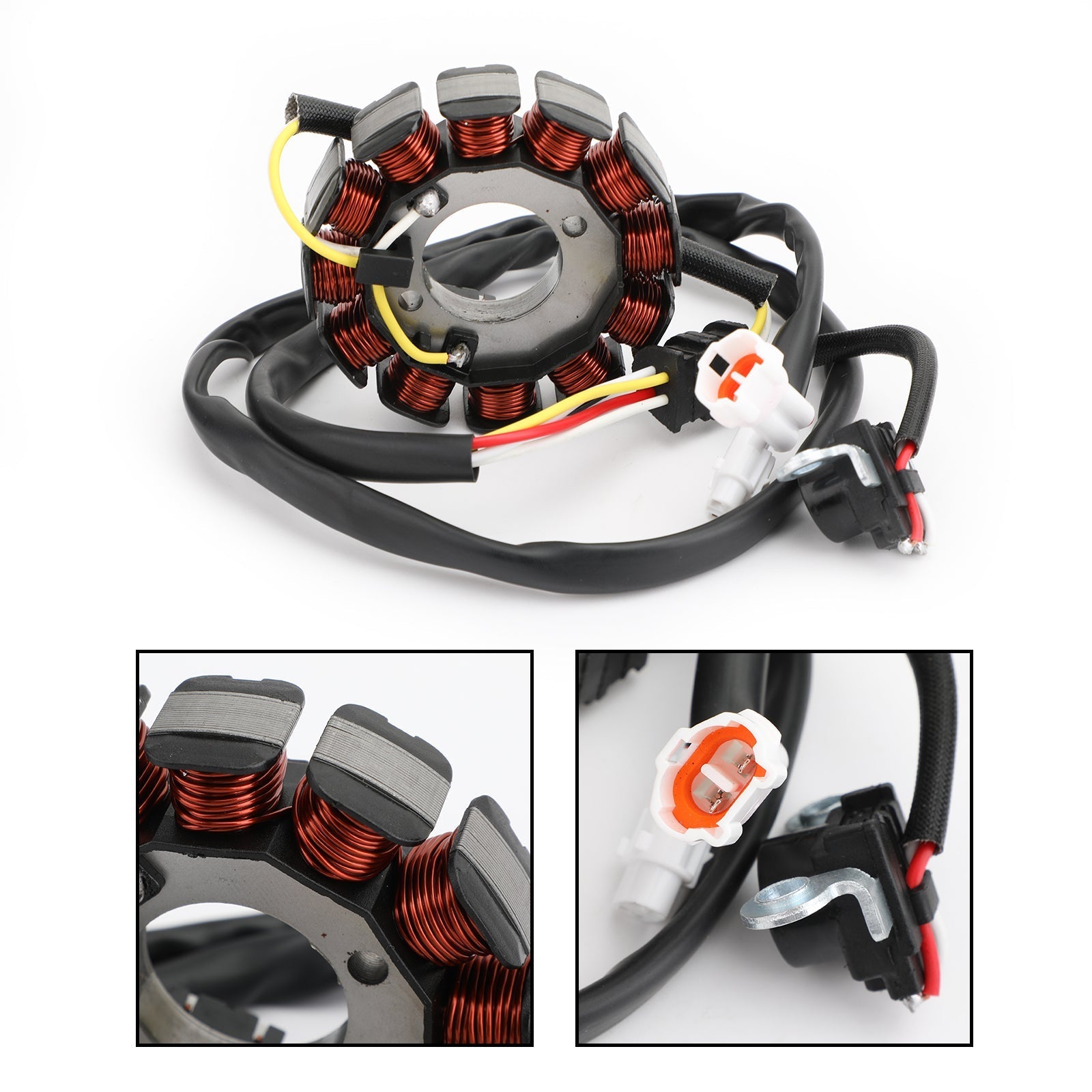

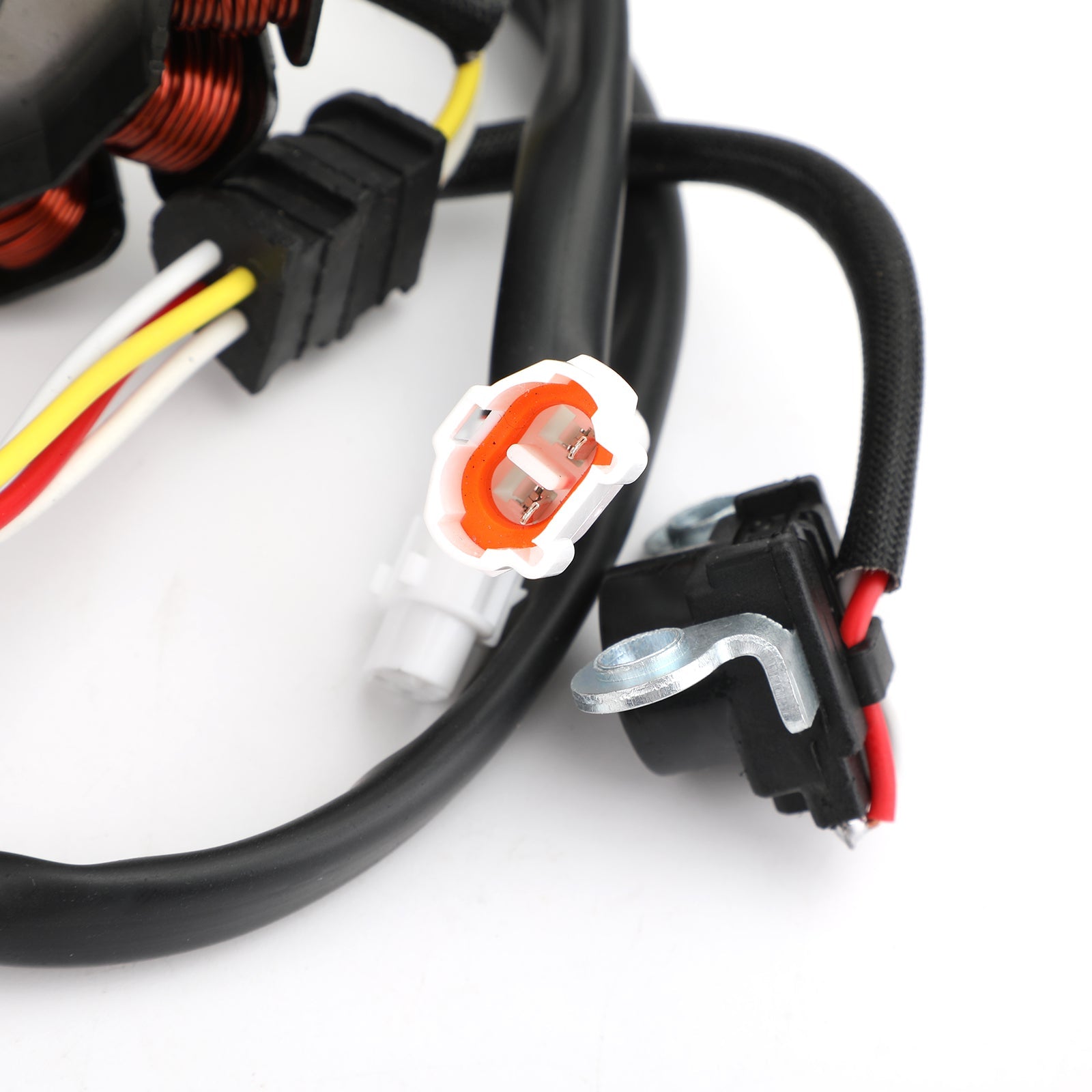

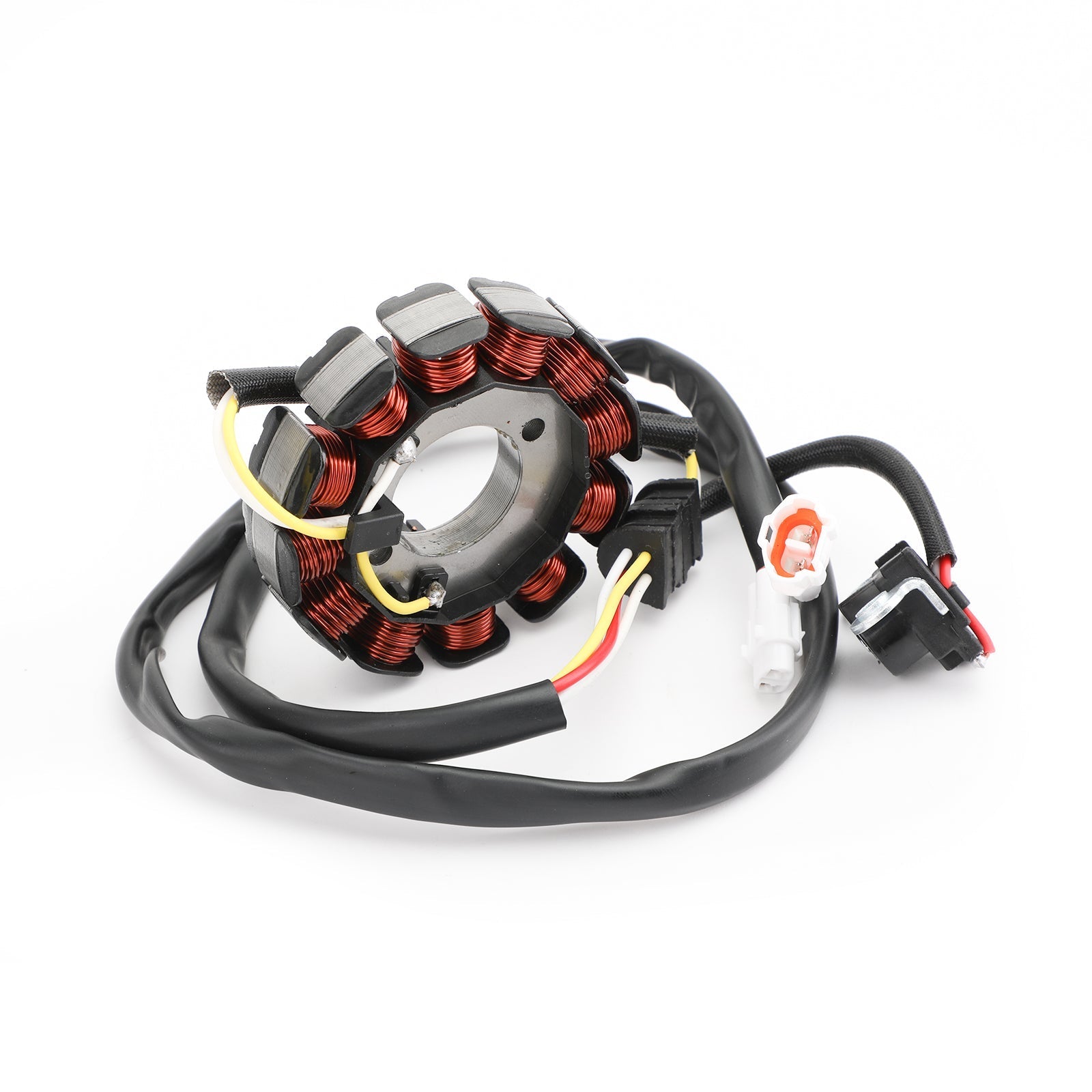

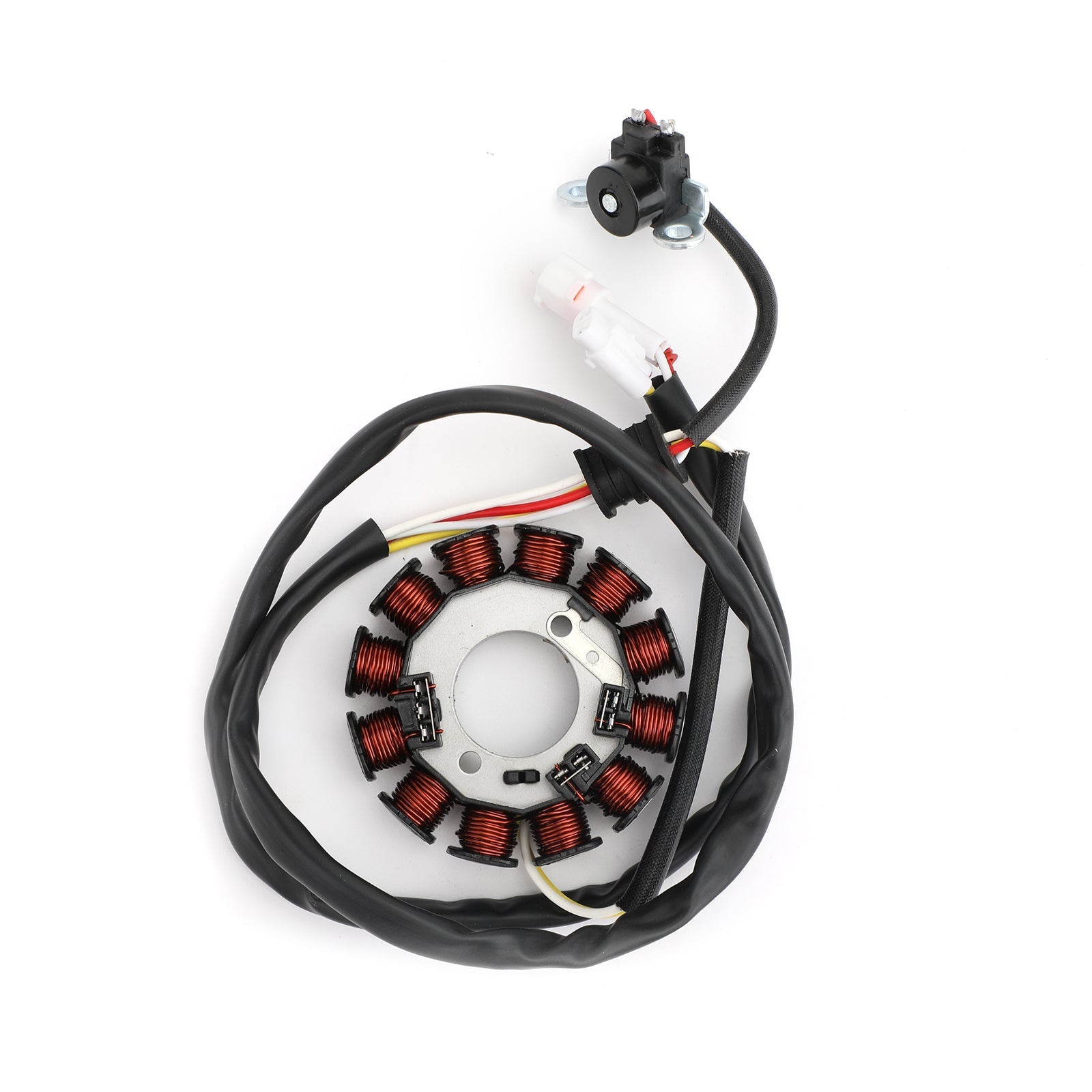

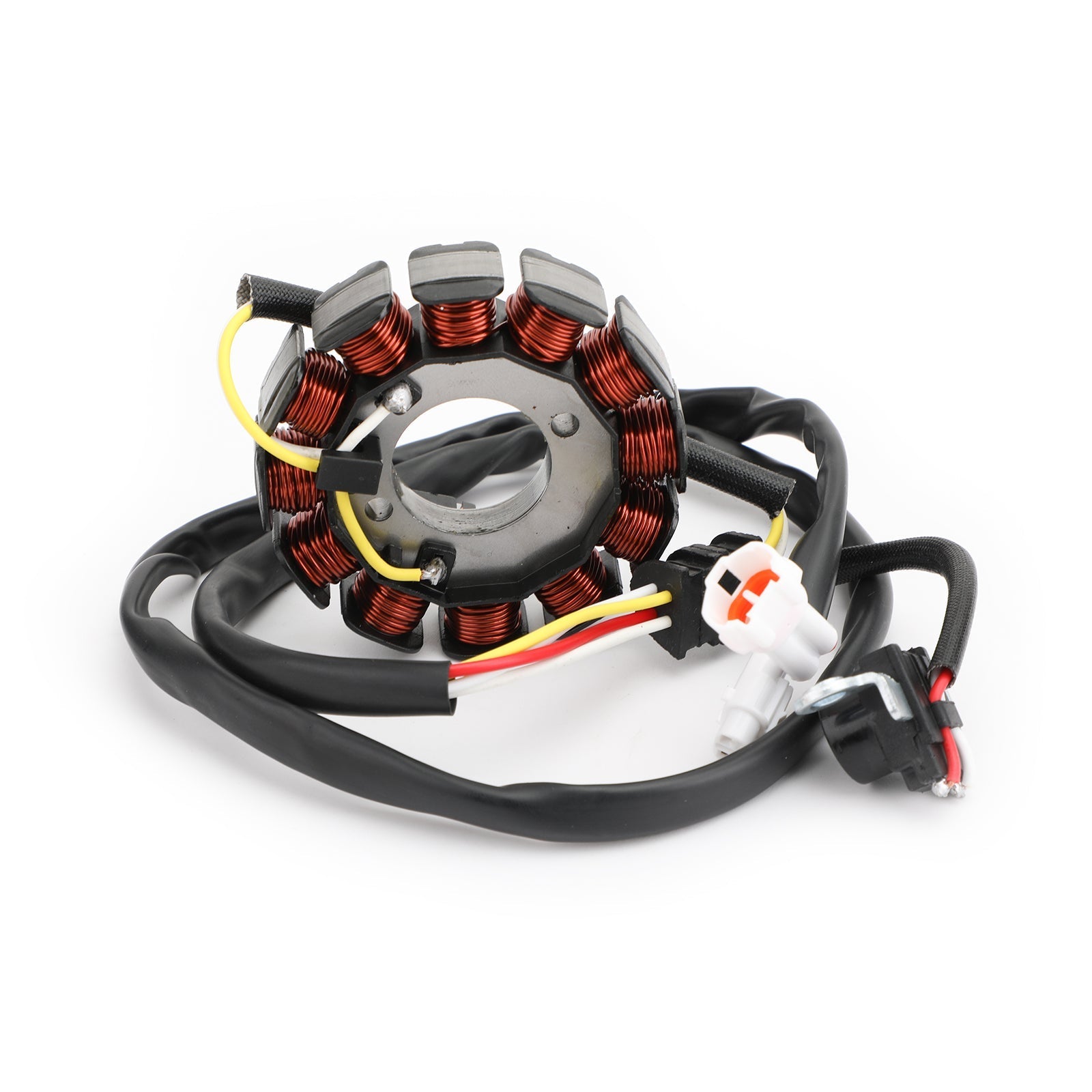

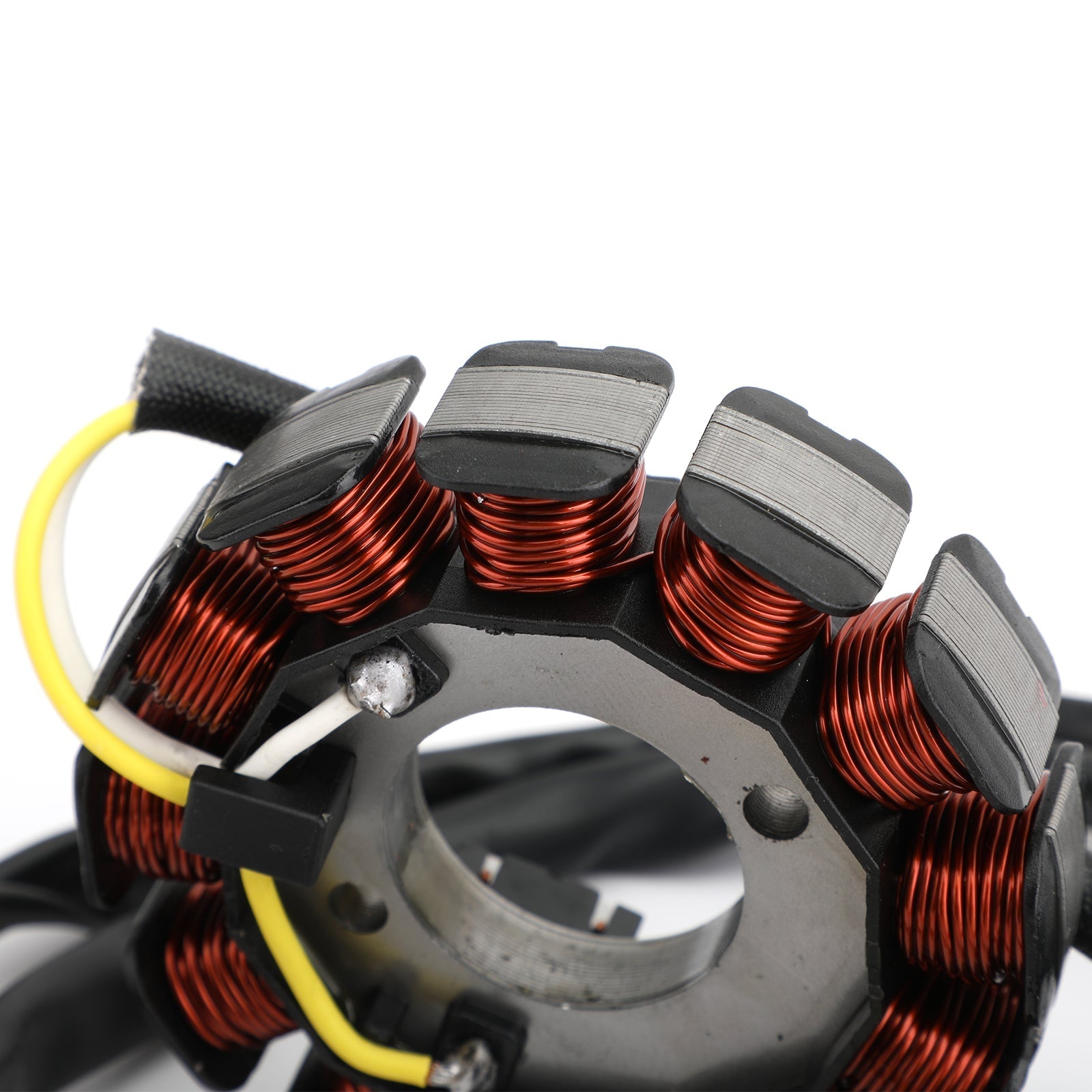

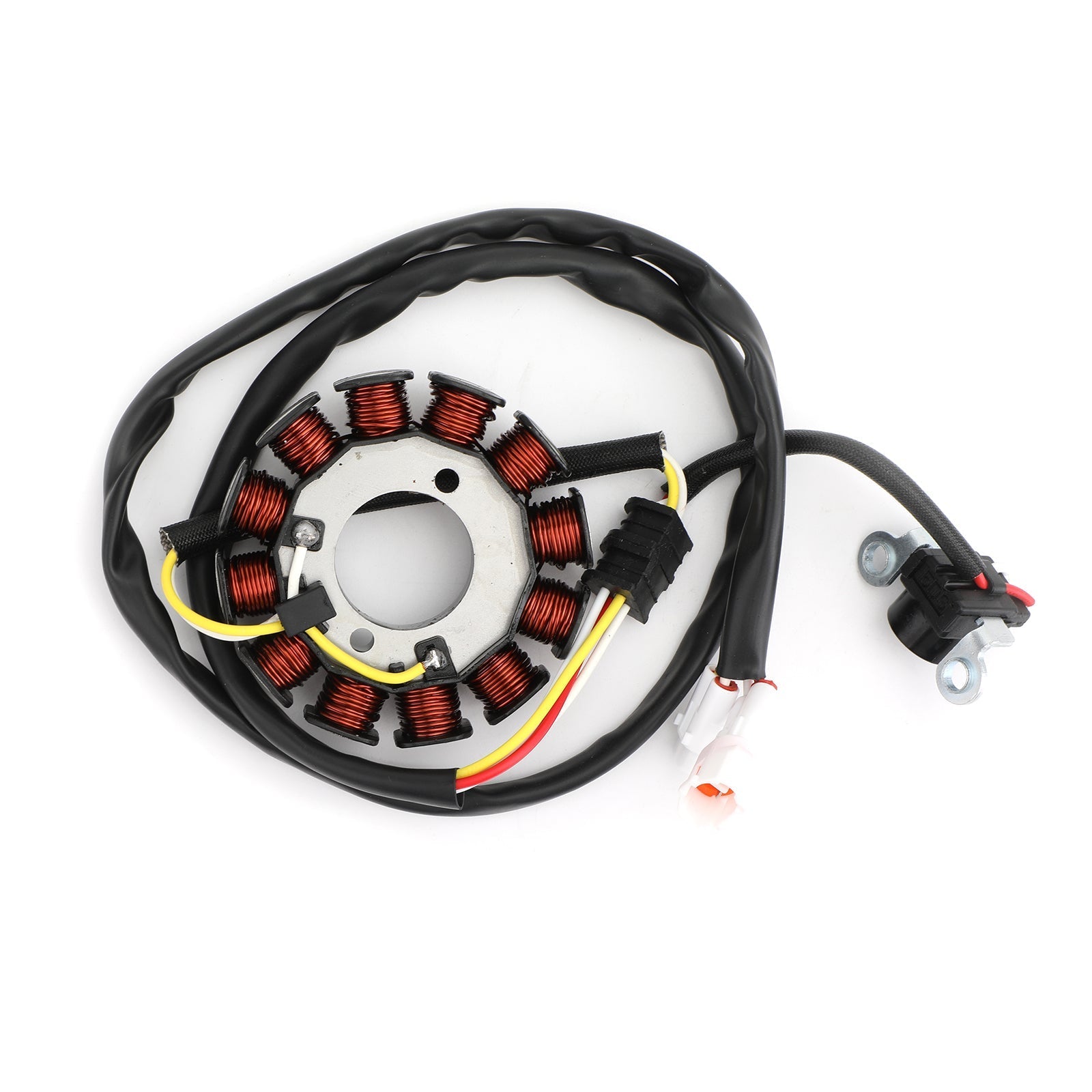

Magneto Generator Stator for Yamaha YFZ 450 2004 2005 2007 2008 2009 2012 2013 Generic
$99.99
Sale price
$99.99
Regular price
Skip to product information
FEATURES:
1.Direct replacement to your original unit
2.Plug-and-play, direct fit, bolt-on installation.
3.Highest grade lamination materials.
4.Highest grade copper windings, resistant to 200 degrees Celsius.
5.Pick up pulsar coil included.
6.Connector included.
7.All products shipped are tested.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

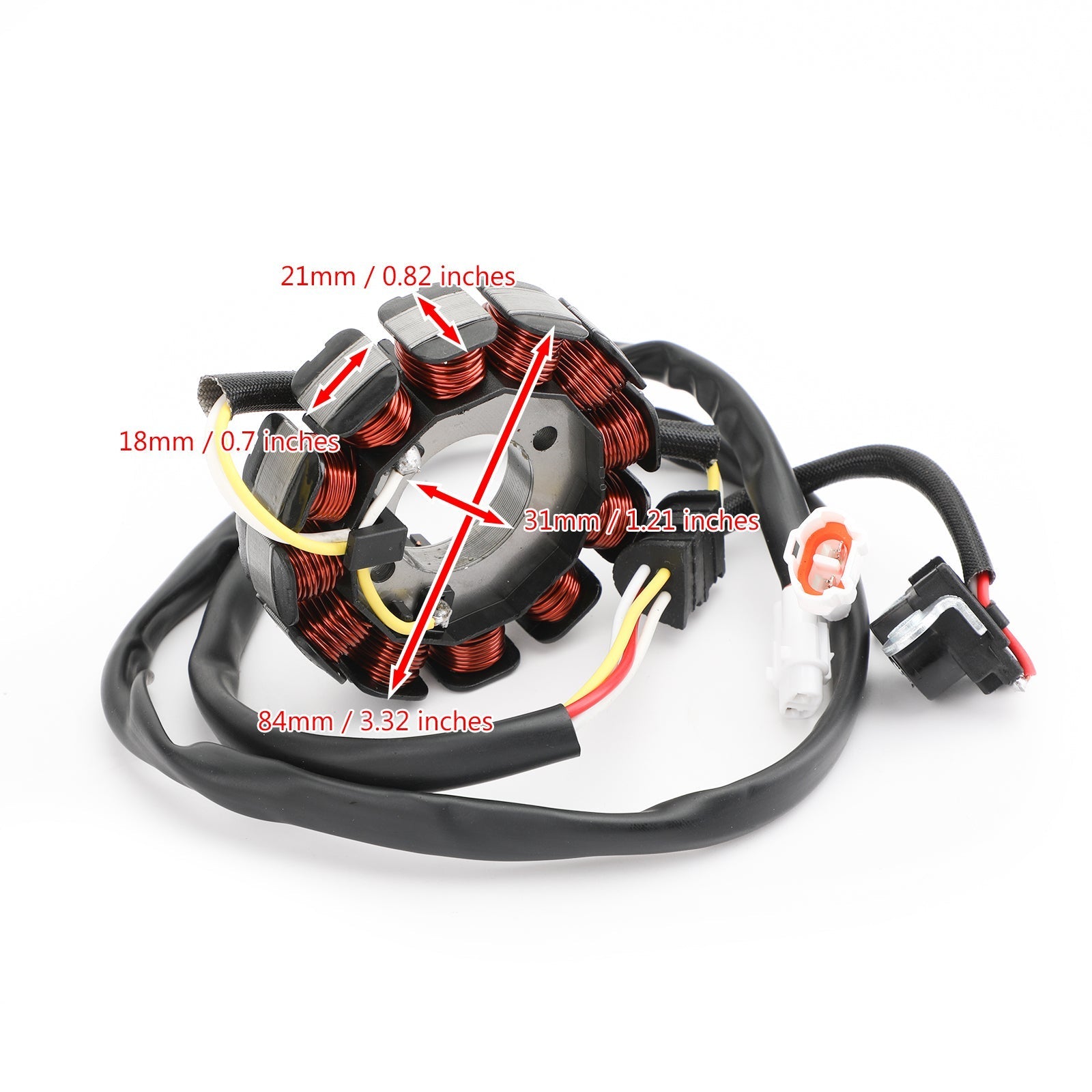

Dimensions :
Interior diameter : 31mm / 1.21 inches
Exterior diameter : 84mm / 3.32 inches
Pole's Thickness : 21mm / 0.82 inches
Pole's Width : 18mm / 0.7 inches
Other specifications :
Number of wires: 4
Number of pins: 4
Number of plugs: 2
Number of fixation holes: 2
Number of poles: 12
FITMENT:
Fits Yamaha YFZ450 S/T 2004-2005
Fits Yamaha YFZ450 W/X/Y 2007-2009
Fits Yamaha YFZ450 2012-2013
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
